Dashboard Side Cover Removal/Installation: Passenger-side

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
4. Glove compartment (without passenger-side knee air bag module) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
5. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
6. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
7. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)

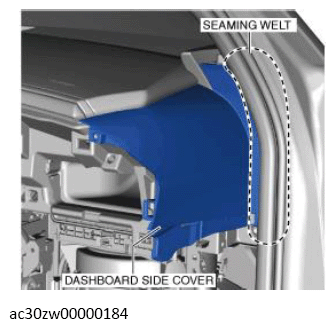

Partially peel back the seaming welt.

Courtesy of MAZDA MOTORS CORP.

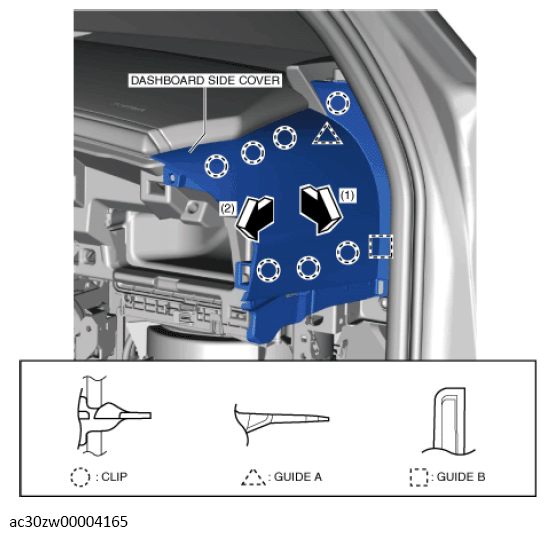

Move the dashboard side cover in the order of arrows (1) and (2) shown in the illustration, and remove it while detaching the clips and guide.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
