Dashboard Wiring Harness Removal Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

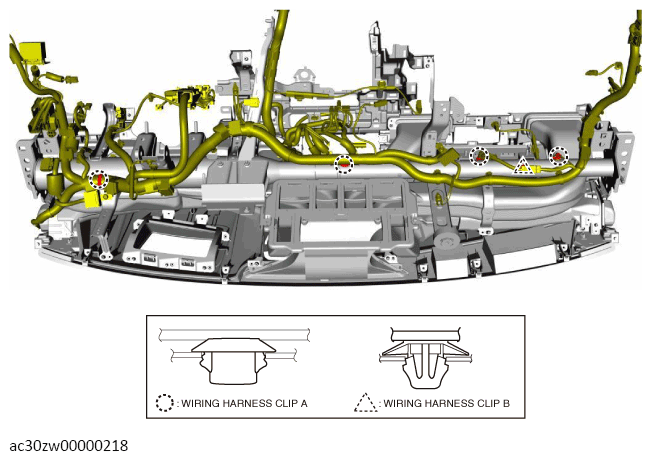

- The shape of the wiring harness clips at the positions shown in the illustration cannot be visually verified.
Refer to wiring harness clips A and B shown in the illustration when removing the dashboard wiring harness.
 Courtesy of MAZDA MOTORS CORP.
|
