Upper Column Cover

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)

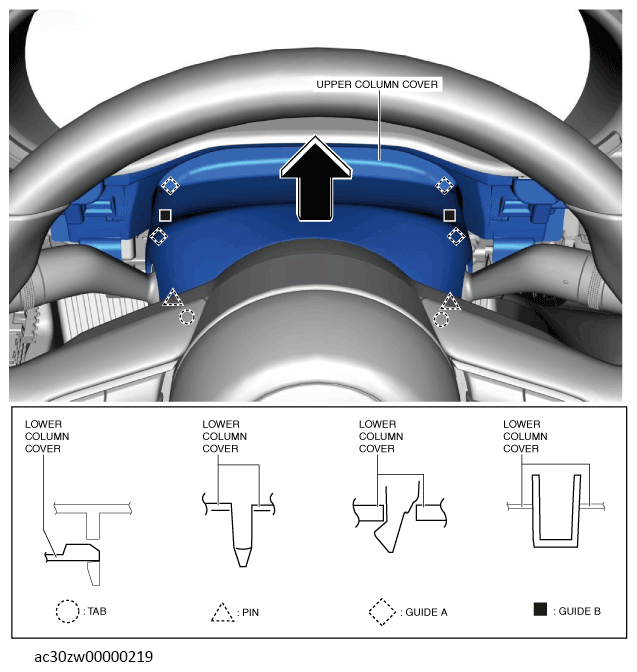

  3. Move the upper column cover in the direction of the arrow, and detach the pins, tabs, guides A and B from the lower column cover.
    G13560636Courtesy of MAZDA MOTORS CORP.

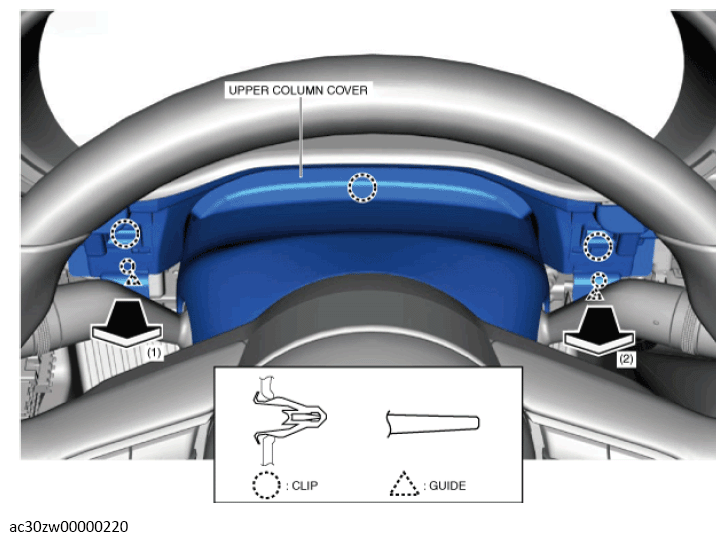

  4. Move the upper column cover in the order of arrows (1) and (2) shown in the illustration, and remove it while detaching the clips and guides.
    G13560637Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
