Assist Handle Removal/Installation: Removal
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

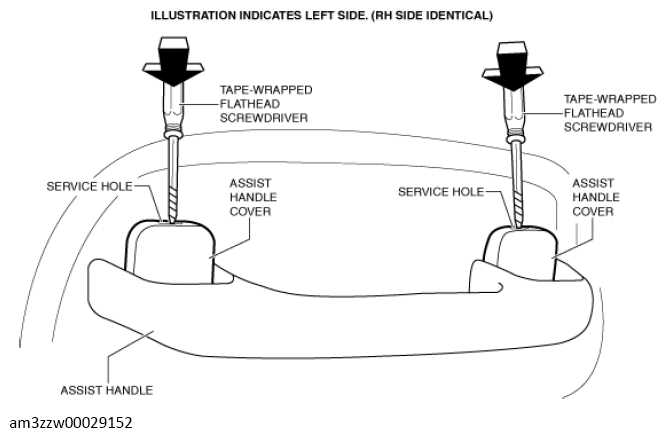

- Insert a tape-wrapped flathead screwdriver into the service hole and remove the assist handle covers.
 Courtesy of MAZDA MOTORS CORP.
|

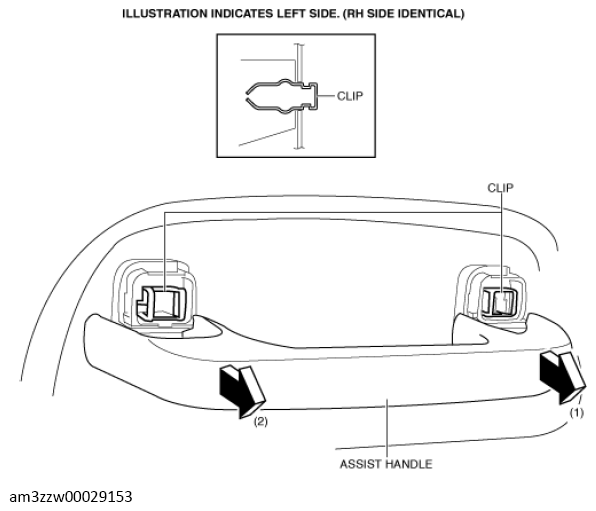

- Pull the assist handle in the order of arrows (1) and (2) shown in the illustration and remove it while detaching the clips.
 Courtesy of MAZDA MOTORS CORP.
|
NOTE:
- Remove the assist handle by shaking it up and down.
