Transfer Bracket Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

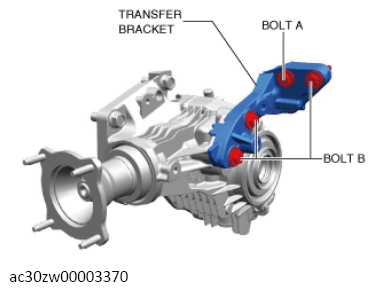

  1. Install the transfer bracket to the transfer and temporarily tighten bolts A and B.
    G13558189Courtesy of MAZDA MOTORS CORP.
  2. Completely tighten the bolts in the order of A and B.
