Transfer Oil Seal (RH) No. 2: Removal
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the transfer oil. (See TRANSFER OIL REPLACEMENT [EV6AX-EL] .)
- Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION (US) .)
- Remove the transfer oil seal (RH) No. 1. (See TRANSFER OIL SEAL (RH) NO. 1 .)

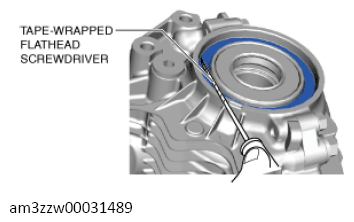

- Insert a tape-wrapped flathead screwdriver into the lip area of the oil seal (RH) No. 2 as shown in the illustration and remove the transfer oil seal (RH) No. 2.
