Transfer Oil Seal (RH) No. 2: Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Apply transfer oil to the lip of the new transfer oil seal (RH) No. 2.

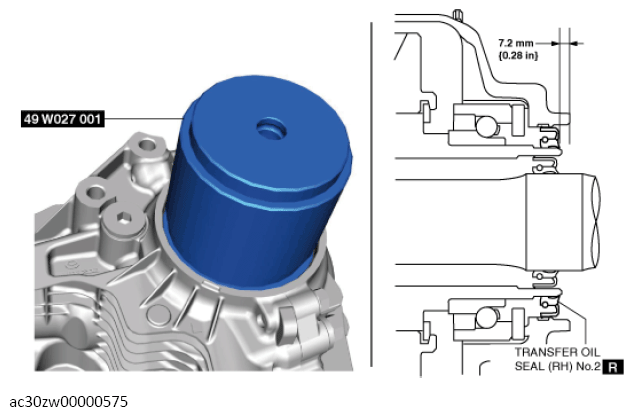

- Install a new transfer oil seal (RH) No. 2 using the SST and a hammer.
- Install the transfer oil seal (RH) No. 1. (See TRANSFER OIL SEAL (RH) NO. 1 .)
- Install the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION (US) .)
- Add the transfer oil. (See TRANSFER OIL REPLACEMENT [EV6AX-EL] .)
