Transfer Oil Seal (RH) No. 1: Removal

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION (US) .)

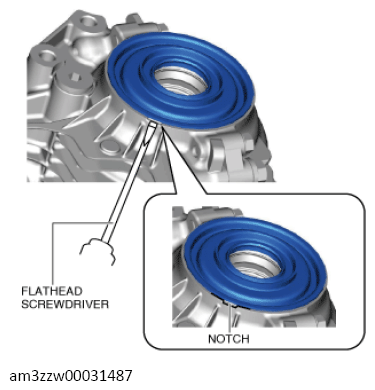

  2. Insert a flathead screwdriver into the notch of the transfer and remove the transfer oil seal (RH) No. 1.
G13558179Courtesy of MAZDA MOTORS CORP.
