Transfer Oil Seal (RH) No. 1: Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply transfer oil to the lip of the new transfer oil seal (RH) No. 1.

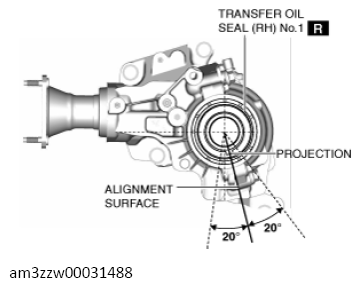

  2. Install the new transfer oil seal (RH) No. 1 projection to within the range shown in the illustration.
    G13558180Courtesy of MAZDA MOTORS CORP.

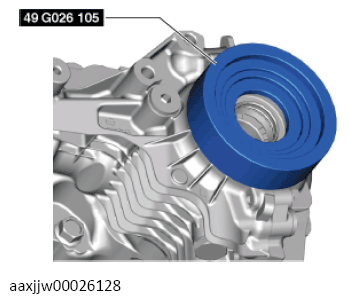

  3. Install a new transfer oil seal (RH) No. 1 using the SST and a hammer.
    G13558181Courtesy of MAZDA MOTORS CORP.
  4. Install the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION (US) .)
