Transfer Oil Seal (LH): Removal
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transfer. (See TRANSFER REMOVAL/INSTALLATION [EV6AX-EL (US)] .)

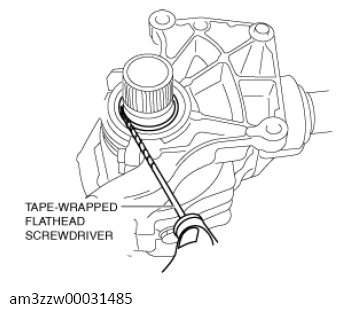

- Insert a tape-wrapped flathead screwdriver into the lip area of the transfer oil seal (LH) as shown in the illustration and remove the oil seal (LH).
