Transfer Oil Seal (LH): Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply transfer oil to the lip of the new transfer oil seal (LH).

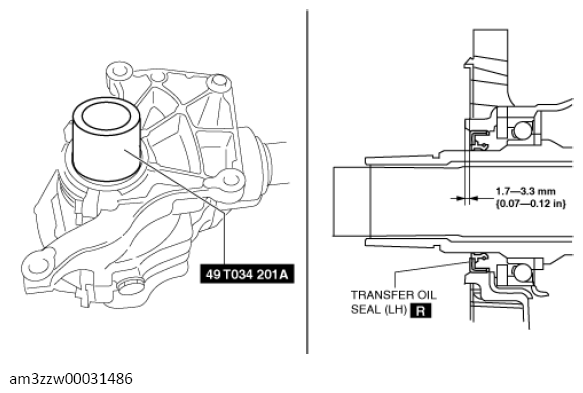

  2. Install a new transfer oil seal (LH) using the SST and a hammer.
    G13558178Courtesy of MAZDA MOTORS CORP.
  3. Install the transfer. (See TRANSFER REMOVAL/INSTALLATION [EV6AX-EL (US)] .)
