Transfer Location Index [GW6AX-El (Us)]
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

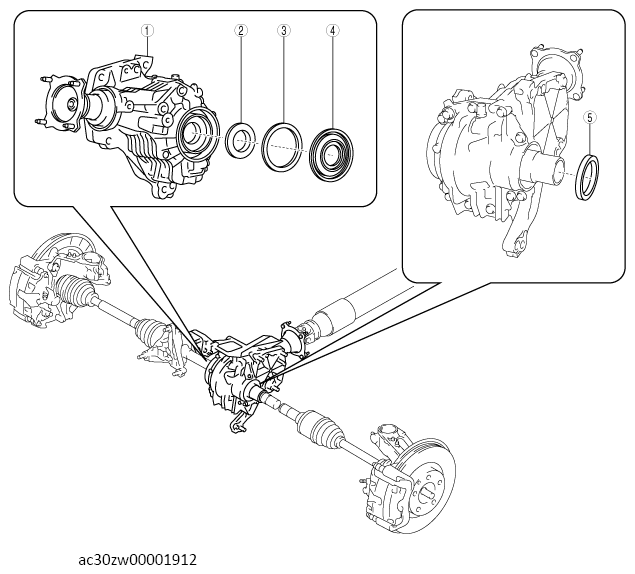

COMPONENT DESCRIPTION
| 1 | Transfer (See TRANSFER OIL INSPECTION [GW6AX-EL (US)] .) (See TRANSFER OIL REPLACEMENT [GW6AX-EL (US)] .) (See TRANSFER REMOVAL/INSTALLATION [GW6AX-EL (US)] .) |
| 2 | Transfer oil seal (RH) No. 3 (See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL (US)] .) |
| 3 | Transfer oil seal (RH) No. 2 (See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL (US)] .) |
| 4 | Transfer oil seal (RH) No. 1 (See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL (US)] .) |
| 5 | Transfer oil seal (LH) (See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL (US)] .) |
