Propeller Shaft Removal Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not mark with a punch to prevent imbalance.

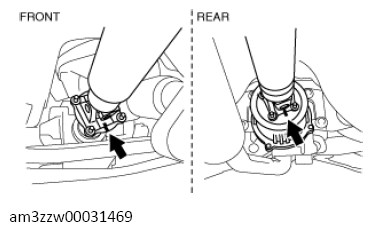

- Before removing the nut, place alignment marks on the companion flange (front) and constant velocity joint, and on the coupling component (rear) and yoke.
- Loosen the nuts (front, rear, center bearing support).
- Remove the front and rear nuts.CAUTION:
- Propeller shaft is attached to the stud.
- Press the propeller shaft and remove it from the rear side.CAUTION:
- Do not bend the propeller shaft to the extent that it interferes with the boot.
- Remove the center bearing support nut, then remove the propeller shaft
