Boot Band Disassembly Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

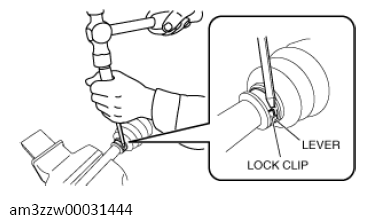

- Using a flat chisel and hammer, lightly tap the lever of the boot band to disconnect the lock clip.
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the boot band using pliers.
 Courtesy of MAZDA MOTORS CORP.
|
