Front Drive Shaft Clip Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

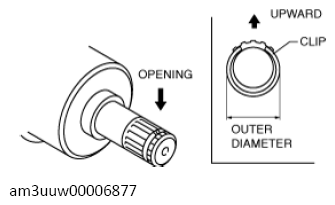

- Install a new clip to the clip groove at the end of the front drive shaft (LH) with the clip opening facing upward.
- Verify that the outer diameter of the clip is within the standard.
CLIP OUTER DIAMETER SPECIFICATION
| Engine type | Outer diameter |
|---|---|
| MTX | Less than 31.2 mm {1.23 in} |
| ATX | Less than 34.0 mm {1.34 in} |
- If it exceeds the standard, repeat installation using a new clip.
