Front Drive Shaft (LH) Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The oil seal could be damaged at the end area of the front drive shaft. When removing the front drive shaft to the transaxle, be careful not to damage the oil seals. If the oil seal is damaged, replace it with a new one.
  1. Perform the following procedures to separate the front drive shaft (LH) from the transaxle.

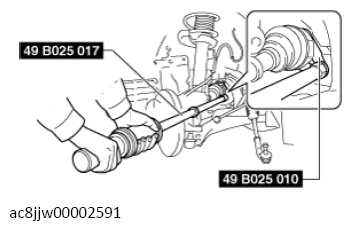

    G13557982Courtesy of MAZDA MOTORS CORP.
    1. Install the SST (49 B025 017) to the SST (49 B025 010).
    2. Separate the front drive shaft (LH) from the transaxle using the SST.
  2. Remove the front drive shaft (LH).
