Bracket, Front Drive Shaft (RH) Installation Note [SKYACTIV-G 2.5T]

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The oil seal could be damaged at the end area of the front drive shaft. When installing the front drive shaft to the transaxle, be careful not to damage the oil seals. If the oil seal is damaged, replace it with a new one.
If the bracket No. 2 nut is loosened, tighten the stud bolts for bracket No. 1 because they may loosen.

Tighten the bracket No. 1 stud bolts.

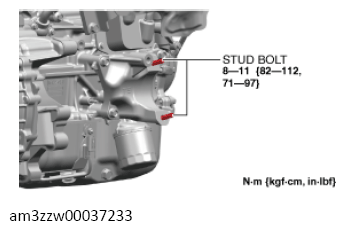

Fig 1: Bracket No. 1 Stud Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Temporarily tighten bolts A and B.

Courtesy of MAZDA MOTORS CORP.
Completely tighten the bolts in the order of A and B.
Apply ATF to the oil seal lip.
Insert the front drive shaft into the transaxle until the front drive shaft bearing contacts the bracket No. 1 stopper.
After temporarily tightening nut C, and completely tighten it.
Install the bolt.

Fig 2: Bracket No. 1 Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

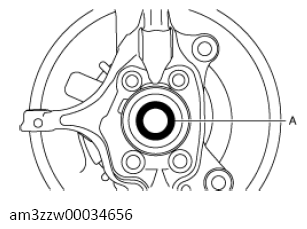

Apply grease (L2Y1 33247 or equivalent) to the wheel bearing inner race and front drive shaft contact surfaces (area A in the illustration).

Courtesy of MAZDA MOTORS CORP.
Insert the front drive shaft to the wheel hub.
