Smaller Diameter

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

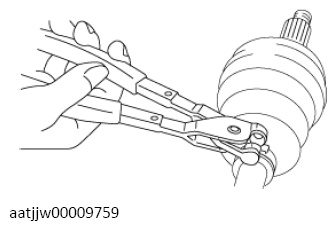

  1. Remove the boot band using end clamp pliers.
G13557947Courtesy of MAZDA MOTORS CORP.
