Front Shock Absorber And Coil Spring Removal/Installation: Removal

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  2. Remove the front shock absorber and steering knuckle component. (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION (US) .)
  3. Secure the front shock absorber and steering knuckle component in a vise.
  4. Remove the bolt and the nut shown in the illustration.

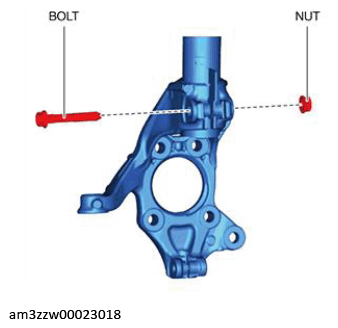

    G13175660Courtesy of MAZDA MOTORS CORP.
  5. Install the SST to the connection area of the front shock absorber and coil spring and the steering knuckle.

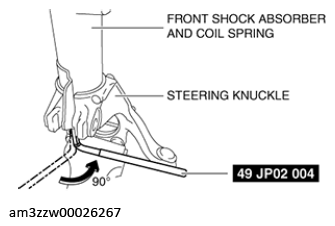

    G13175661Courtesy of MAZDA MOTORS CORP.
  6. Rotate the SST90° and disconnect the front shock absorber and coil spring from the steering knuckle.
  7. Remove the front shock absorber and coil spring and the steering knuckle.

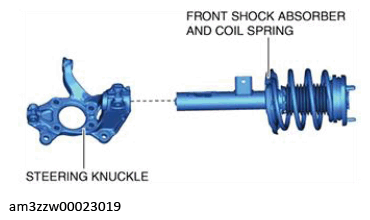

G13175662Courtesy of MAZDA MOTORS CORP.
