Mounting Rubber Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

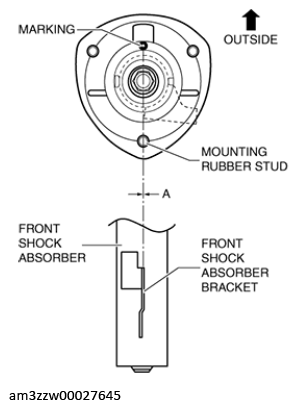

- Install the mounting rubber so that the mounting rubber stud and the front shock absorber bracket are in position A shown in the illustration.
 Courtesy of MAZDA MOTORS CORP.
|
A: 0°±5°
NOTE:
- Assemble the mounting rubber so that the marking faces the outside of the vehicle.
