No. 1 Engine Mount Rubber, Front Crossmember Component Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

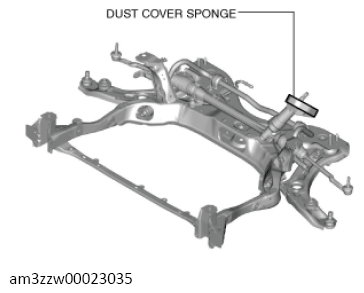

When installing the front crossmember component to the vehicle, if the dust boots are not assembled to the body side correctly water and foreign matter could penetrate the vehicle interior. Be careful not to allow the sponge part of the dust boot to become pinched in the installation area on the body side or become creased by contact.

Courtesy of MAZDA MOTORS CORP.

Temporarily tighten bolt A shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Temporarily tighten bolt B shown in the illustration.
Tighten bolt A.
Tighten bolt B.
