Front Crossmember Component Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Always verify that the front crossmember component is securely supported by a jack. If the front crossmember component falls off, it can cause serious injury or death, and damage to the vehicle.

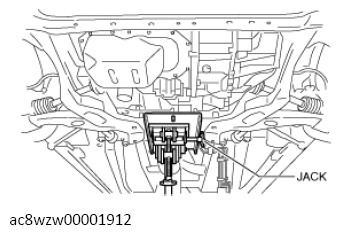

  1. Support the front crossmember component using a jack.
    G13557817Courtesy of MAZDA MOTORS CORP.
  2. Remove the installation bolts of the front crossmember component.
  3. Move the front crossmember extension and slowly lower the transmission jack.
  4. Remove the front crossmember, front stabilizer, front lower arm, and the steering gear and linkage as a single unit.
