Water Pump Component Removal Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Place a container under the engine to collect the engine coolant remaining in the engine.

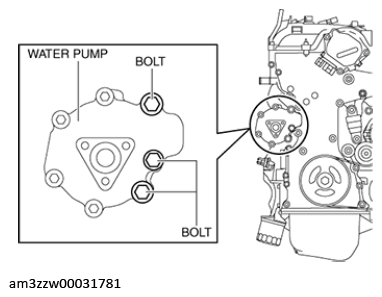

- Slightly loosen the three water pump component bolts shown in the illustration and collect the draining engine coolant into a container.CAUTION:
- Do not remove the water pump component completely at this time because the engine coolant remaining in the engine will drain out.
- After the engine coolant stops draining, remove the water pump component.
