Radiator Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

To prevent damage to the radiator core, protect it by covering the radiator surface with cardboard
Lift the radiator and remove it from the radiator installation holes on the shroud panel.
Move the radiator and condenser to the engine side.
Remove the bolts which secure the condenser to the radiator.

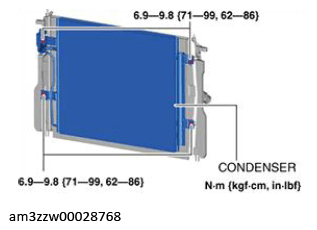

Fig 1: Condenser Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the radiator from below the engine compartment.
