Upper Radiator Hose Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Install the upper radiator hose using the following procedure:

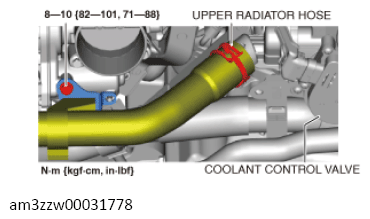

- Tighten the bolt shown in the illustration.
Courtesy of MAZDA MOTORS CORP.

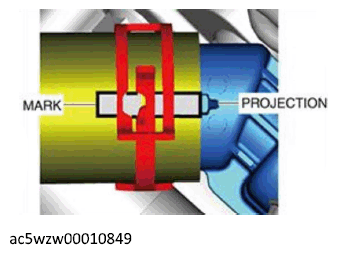

- Connect the upper radiator hose to the coolant control valve so that the projection position is aligned with the mark.
 Courtesy of MAZDA MOTORS CORP.
|
