Lower Radiator Hose Component Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not apply oil (such as engine oil, ATF) to the gasket. Otherwise, the gasket could swell cause a seal malfunction.

Install the lower radiator hose component using the following procedure:

Insert a new gasket into the pipe groove.

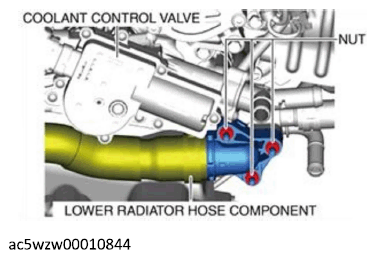

Tighten the nuts shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

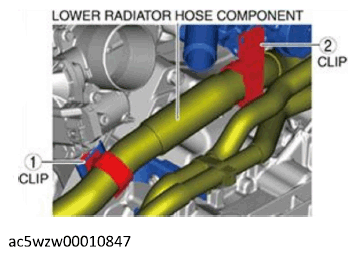

Secure the lower radiator hose using clips in the order shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
