DTC B1B48-04: Rear Corner Ultrasonic Sensor (LH) Signal Circuit Malfunction (Parking Assist Unit (Ultrasonic)): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

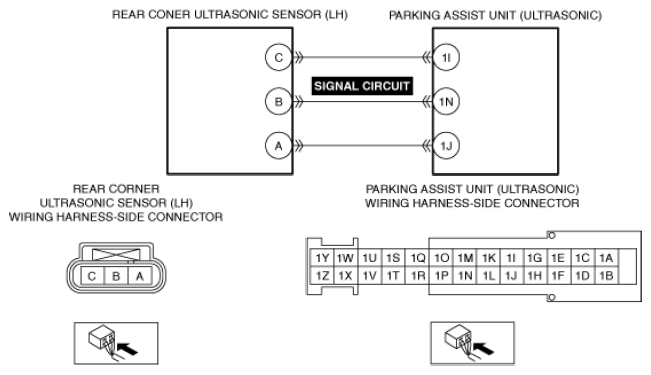

DTC B1B48:04 (PARKING ASSIST UNIT (ULTRASONIC)) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Rear corner ultrasonic sensor (LH) signal circuit malfunction |
| Detection condition |
- The parking assist unit (ultrasonic) detects a rear corner ultrasonic sensor (LH) signal circuit malfunction for 11 s.
|
| Fail-safe |
(See DTC TABLE [PARKING ASSIST UNIT (ULTRASONIC) (US)] .) |
| Possible cause |
- Rear bumper malfunction
- Rear corner ultrasonic sensor (LH) connector or terminal malfunction
- Parking assist unit (ultrasonic) connector or terminal malfunction
- Short to ground in rear corner ultrasonic sensor (LH) signal circuit
- Short to power supply in rear corner ultrasonic sensor (LH) signal circuit
- Open circuit in rear corner ultrasonic sensor (LH) signal circuit
- Rear corner ultrasonic sensor (LH) malfunction
- Parking assist unit (ultrasonic) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
