DTC P250F:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Engine oil level signal: engine oil level low |
| Detection condition |
Determination conditions |
- The engine oil level has decreased around or below MIN mark.
|
| Preconditions |
- Engine speed: 600-2, 000 rpm*1
- Vehicle speed: 5 km/h {3 mph} or more*1
- Engine oil control: during low oil pressure
- Engine oil temperature: 20-90°C {68-194°F}*1
- G at front and back of vehicle: 0.2 G or less
- G at left and right sides of vehicle: 0.2 G or less
- The following DTCs are not detected:
- Communication error between engine oil level sensor and PCM: U1100:00
- Engine oil level sensor: P250A:00 and P250C:00
*1
: Standard can be verified by displaying PIDs using M-MDS |
| Drive cycle |
|
| Self test type |
|

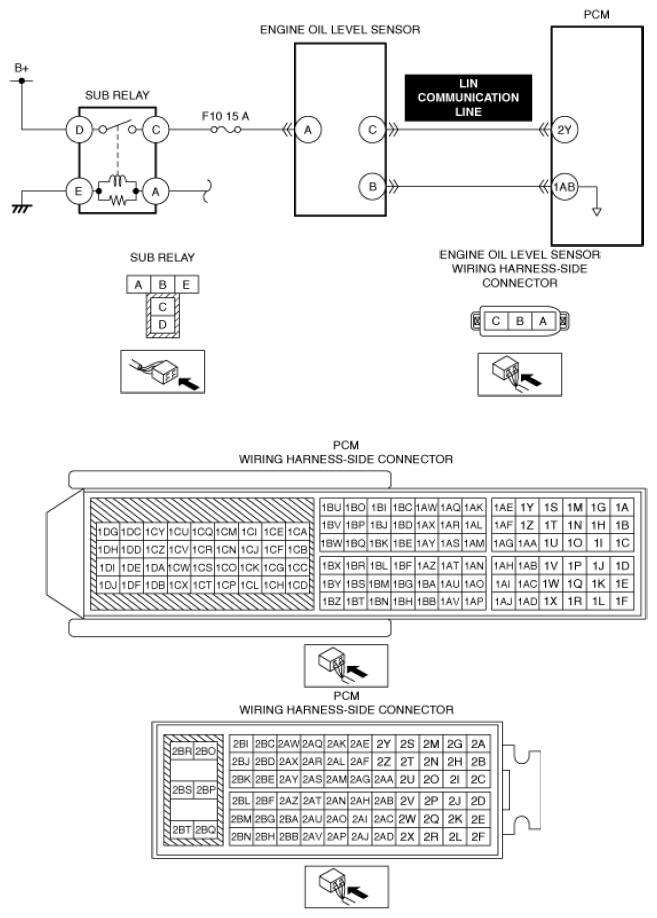

| Sensor used |
- PCM
- Engine oil level sensor
- Engine oil temperature sensor
- Low-G sensor (built-into Sophisticated Airbag Sensor (SAS) control module)
|
| Fail-safe function |
|
| Vehicle status when DTCs are output |
|
| Possible cause |
- Improper engine oil level (low)
- Engine oil leakage
- Engine oil level sensor malfunction
- Clogging of oil passage to engine oil level sensor detection area
- Engine oil level sensor internal application specific integrated circuit malfunction
- Erratic signal to PCM
- Engine oil level sensor connector or terminals malfunction
- Open circuit in LIN communication line
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
