DTC P2185-00: ECT Sensor No. 2 Circuit High Input: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC P2185:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
ECT sensor No. 2 circuit high input |
| Detection condition |

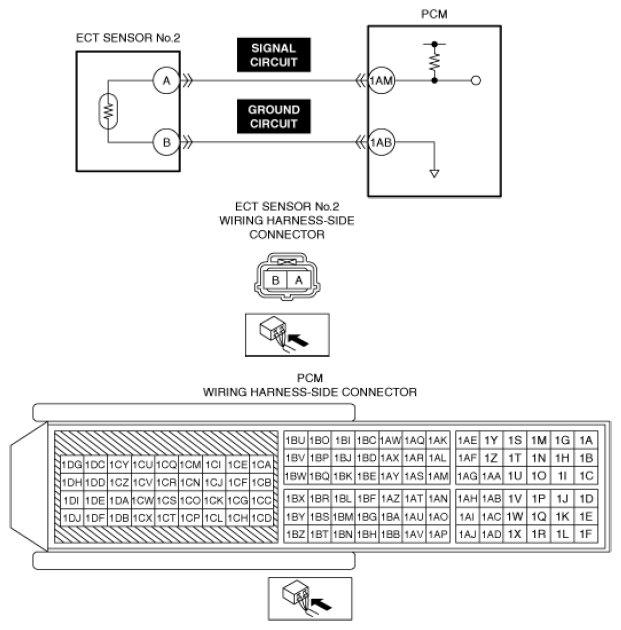

- The PCM monitors the ECT sensor No. 2 signal. If the PCM detects that the ECT sensor No. 2 voltage at the PCM terminal 1AM is above 4.94 V for 5 s, the PCM determines that the ECT sensor No. 2 circuit has a malfunction.
|
| Fail-safe |
|
| Possible cause |
- ECT sensor No. 2 connector or terminals malfunction
- ECT sensor No. 2 malfunction
- PCM connector or terminals malfunction
- Short to power supply in ECT sensor No. 2 signal circuit
- Open circuit in any of the following ECT sensor No. 2 circuits.
- Signal circuit
- Ground circuit
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
