DTC P189D-00: AWD Solenoid: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC P189D:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	AWD solenoid

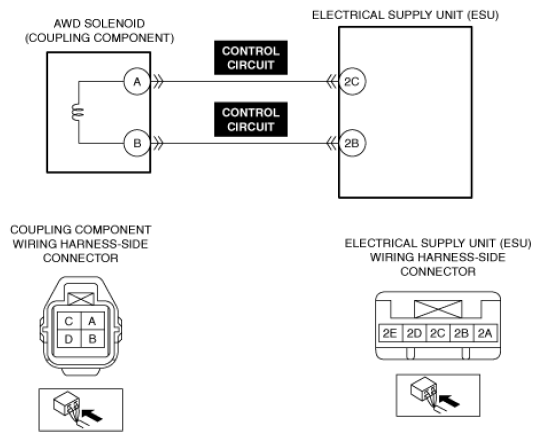

Detection condition	The PCM detects a short to power supply in the AWD solenoid control circuit.
Fail-safe	Inhibits the i-ACTIV AWD control.
Possible cause	Coupling component connector or terminals malfunction AWD solenoid malfunction Electrical supply unit (ESU) connector or terminals malfunction Short to power supply in AWD solenoid control circuit Electrical supply unit (ESU) malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
