Rear Outer Handle Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

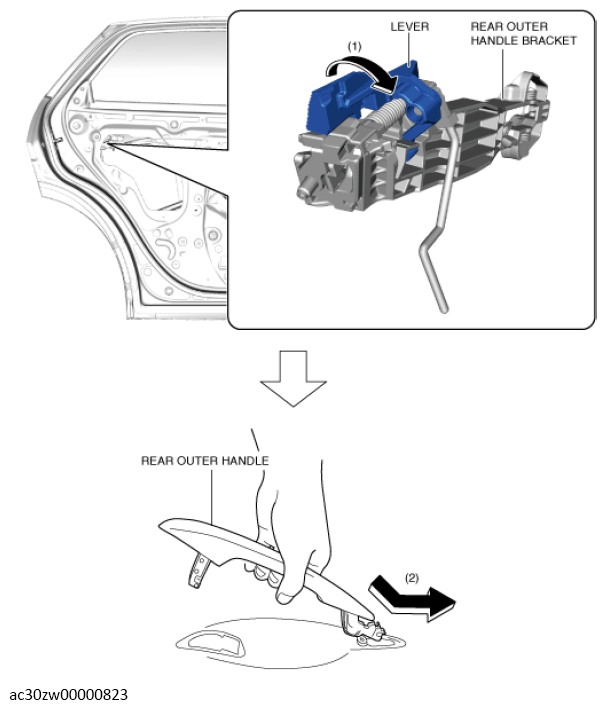

- While pressing the rear outer handle bracket towards the body, move the lever in the direction of arrow
- shown in the illustration, move the rear outer handle in the direction of arrow (2), and then install the rear outer handle.
 Courtesy of MAZDA MOTORS CORP.
|
