LED Illumination Inspection
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the Push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)

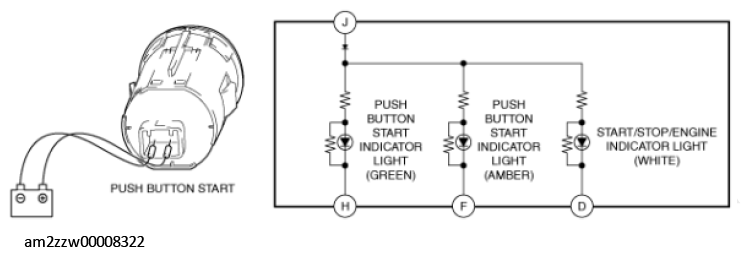

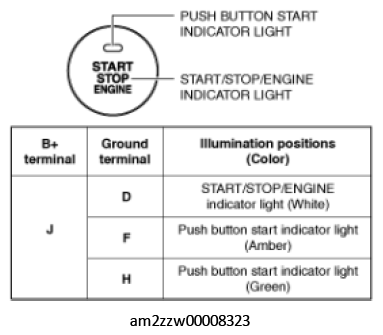

- Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.
- If the LED does not illuminate as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)
