Liftgate/Power Liftgate (PLG) Latch Switch Inspection

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)

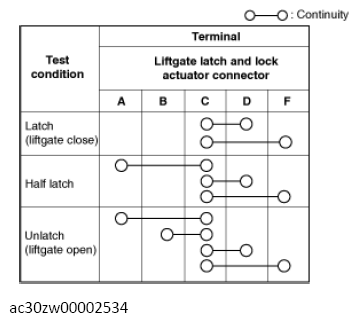

Verify that the continuity is as indicated in the table.

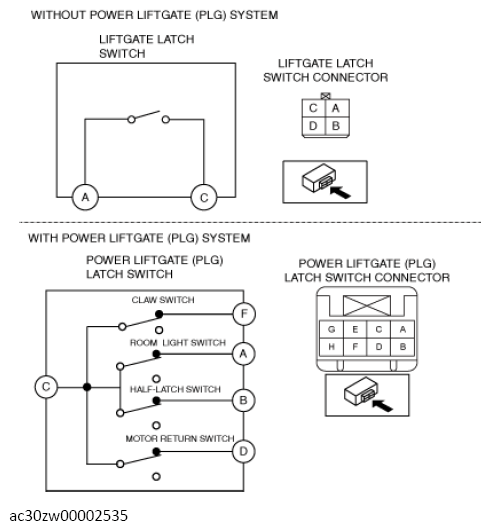

Without power liftgate (PLG)

Courtesy of MAZDA MOTORS CORP.

With power liftgate (PLG)

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the replace the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
NOTE:
- When inspecting the latch condition of the liftgate latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
Courtesy of MAZDA MOTORS CORP.
