Without rear vent duct

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the console panel. (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)

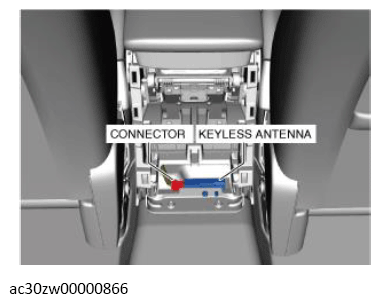

  3. Disconnect the connector.
    G13560378Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Disconnect the connector while holding the keyless antenna, otherwise the keyless antenna bracket could be damaged.

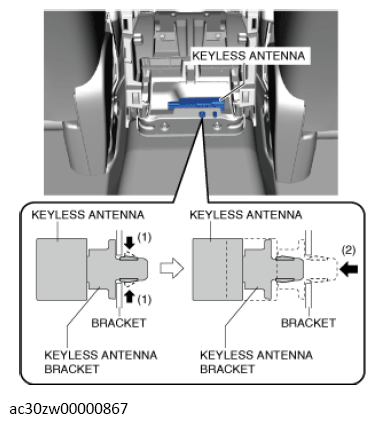

  4. While pressing the keyless antenna bracket tab in the direction of arrow (1) shown in the illustration, press it in the direction of arrow (2) to detach the keyless antenna bracket tab from the bracket.
    G13560379Courtesy of MAZDA MOTORS CORP.
  5. Remove the keyless antenna from the bracket.
  6. Insert a tape-wrapped flathead screwdriver into the position shown in the illustration.
    G13560377Courtesy of MAZDA MOTORS CORP.
  7. Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the illustration to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.
  8. Remove the keyless antenna bracket from the keyless antenna.
  9. Install in the reverse order of removal.
