Door Lock Switch Removal/Installation (Us): Liftgate
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the liftgate recess. (See LIFTGATE RECESS REMOVAL/INSTALLATION .)

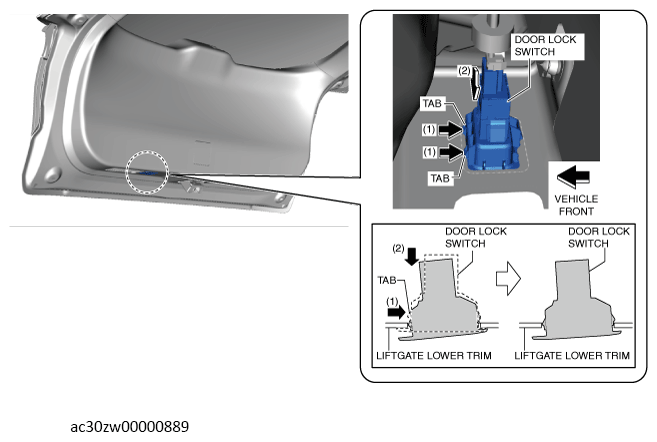

- While pressing the tabs of the door lock switch in the direction of arrows (1) shown in the illustration, move the door lock switch in the direction of arrow (2) and detach the tabs of the door lock switch from the liftgate lower trim.

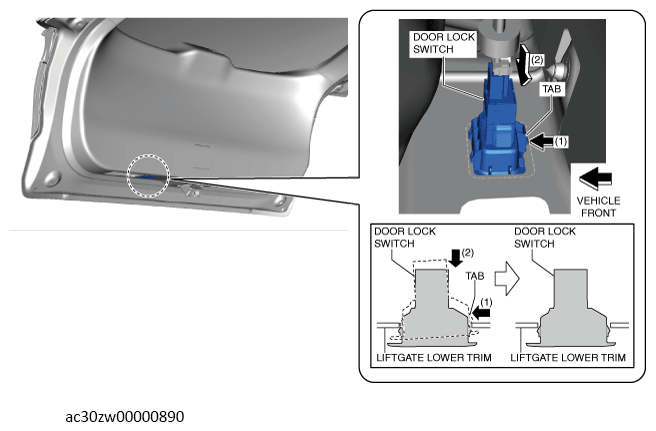

- While pressing the tab of the door lock switch in the direction of arrows (1) shown in the illustration, move the door lock switch in the direction of arrow (2) and detach the tab of the door lock switch from the liftgate lower trim.

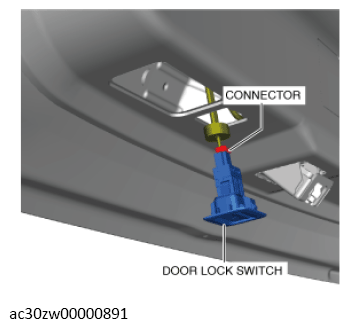

- Disconnect the connector.
- Remove the door lock switch.
- Install in the reverse order of removal.
