DTC P0616-24: Circuit Malfunction On Downstream Side Of Starter Relay (BCM) (Us): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC P0616:24 (BCM) (US) DETECTION CONDITION AND POSSIBLE CAUSE

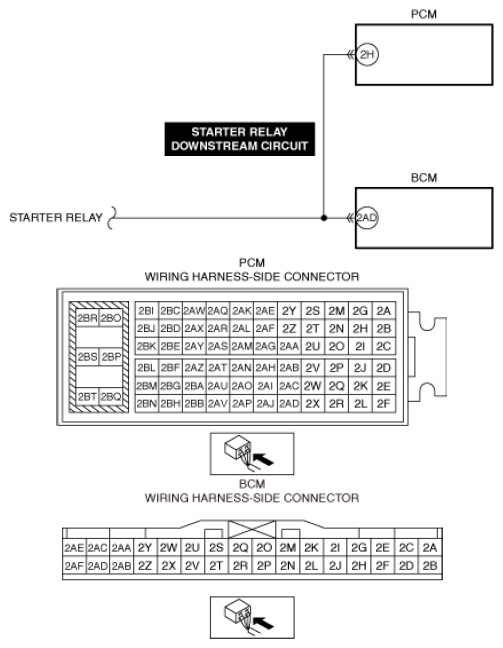

System malfunction location	Circuit malfunction on downstream side of starter relay
Detection condition	The body control module (BCM) detects an open circuit in the starter relay downstream circuit for a continuous 5 times.
Fail-safe	Not applicable
Possible cause	DTCs are stored in the PCM. Body control module (BCM) connector or terminal malfunction PCM connector or terminal malfunction Open circuit in starter relay downstream circuit PCM malfunction Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
