DTC B1D36-62: Turn Switch Circuit Malfunction (BCM) (Us): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

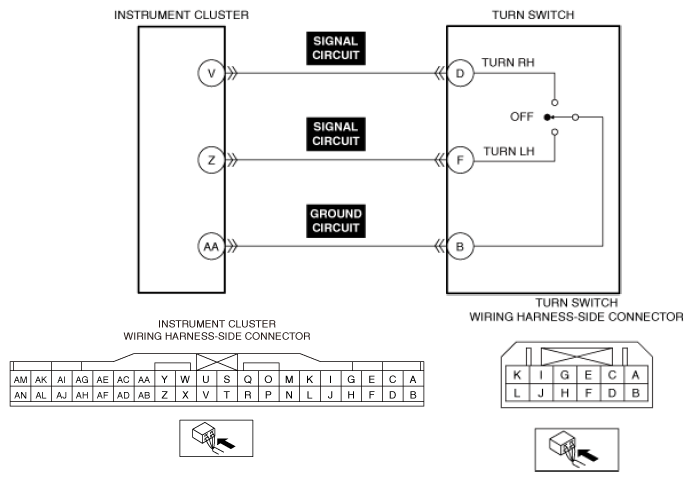

DTC B1D36:62 (BCM) (US) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Turn switch circuit malfunction
Detection condition	The instrument cluster received the error signals from the turn switch.
Fail-safe	Not applicable
Possible cause	Turn switch connector or terminal malfunction Turn switch malfunction Instrument cluster connector or terminal malfunction Short to ground in turn switch signal circuit Instrument cluster malfunction Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
