DTC B1529-19: Power Liftgate (PLG) Drive Unit (LH) Motor Circuit Malfunction (BCM): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1529:19 (BCM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location Power liftgate (PLG) drive unit (LH) motor circuit malfunction
Detection condition
  • The power liftgate (PLG) control module detects that the power liftgate (PLG) drive unit (LH) circuit voltage of specification or more.

Preconditions
  • Power liftgate (PLG) drive unit motor is operating.
Fail-safe
  • Stops the power liftgate (PLG) system operation.
Possible cause
  • Power liftgate (PLG) drive unit (LH) connector or terminal malfunction
  • Power liftgate (PLG) control module connector or terminal malfunction
  • Short to power supply in power liftgate (PLG) drive unit (LH) signal circuit
  • Power liftgate (PLG) drive unit (LH) malfunction
  • Power liftgate (PLG) control module malfunction
  • Body control module (BCM) malfunction

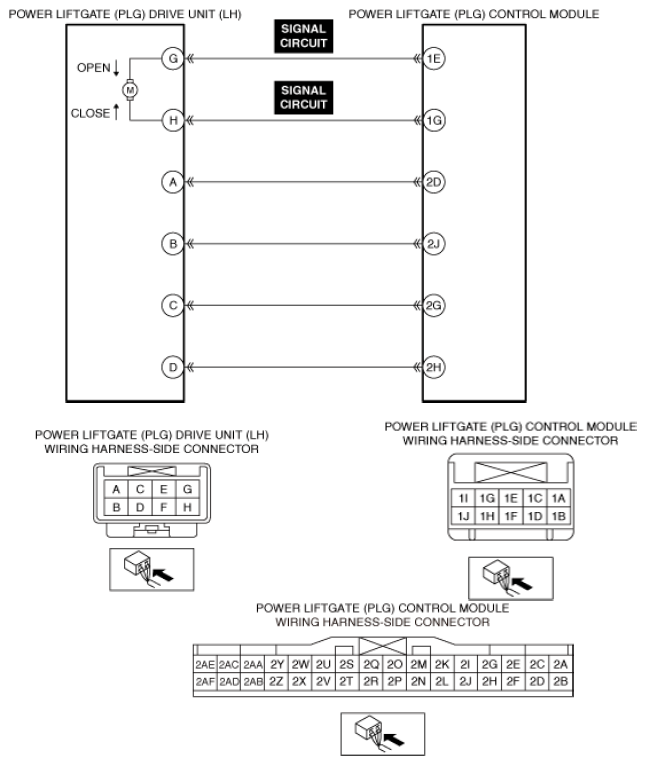

G13559697Courtesy of MAZDA MOTORS CORP.
