DTC B1512-87: Communication Error With Indicator Unit (BCM): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1512:87 (BCM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Communication error with indicator unit
Detection condition	The body control module (BCM) cannot receive the signals from the indicator unit.
Fail-safe	Not applicable

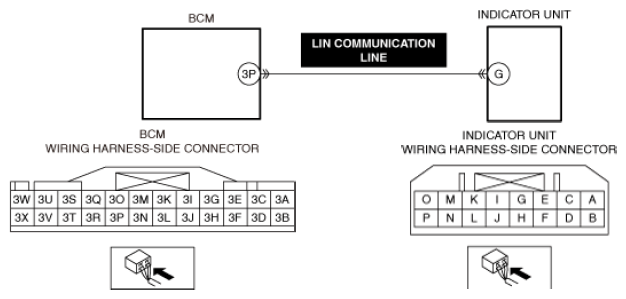

Possible cause	Indicator unit connector or terminal malfunction Body control module (BCM) connector or terminal malfunction Short to ground in indicator unit LIN communication line Open circuit in indicator unit LIN communication line Indicator unit malfunction Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
