DTC B1511-14: Taillight (Liftgate Light) Circuit Or License Plate Light Circuit Malfunction (BCM): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

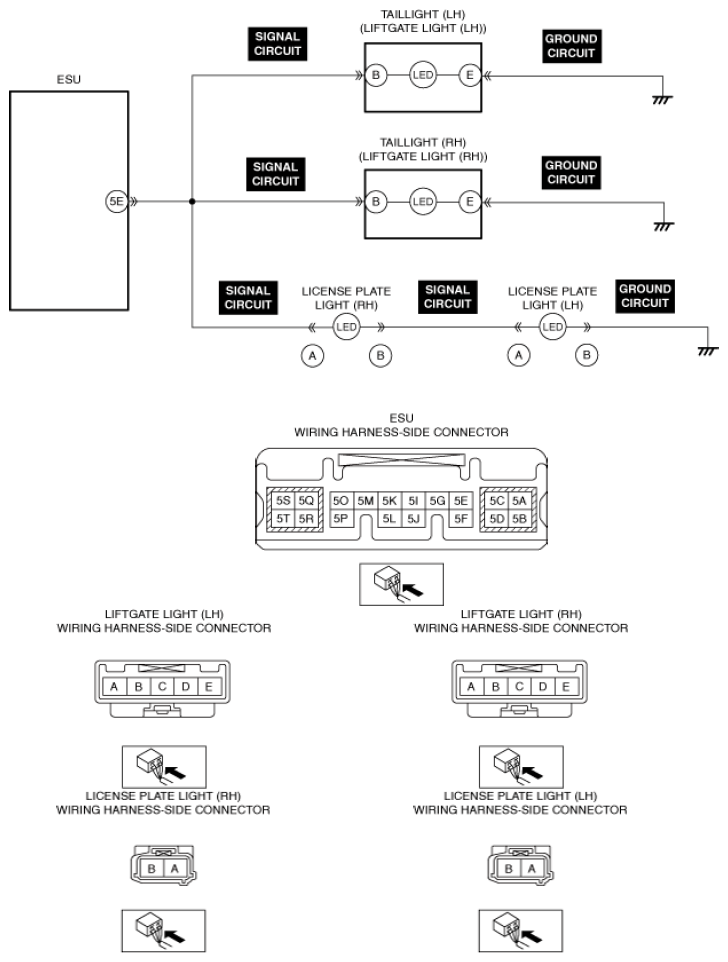

DTC B1511:14 (BCM) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Taillight (liftgate light) circuit or license plate light circuit malfunction |
| Detection condition |
- The electrical supply unit (ESU) detects a short to ground in the taillight (liftgate light) circuit or license plate light circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Liftgate light (LH) connector or terminal malfunction
- Liftgate light (RH) connector or terminal malfunction
- License plate light (LH) connector or terminal malfunction
- License plate light (RH) connector or terminal malfunction
- Electrical supply unit (ESU) connector or terminal malfunction
- Short to ground in taillight (liftgate light) signal circuit
- Short to ground in license plate light signal circuit
- Taillight (liftgate light) (LH) malfunction
- Taillight (liftgate light) (RH) malfunction
- License plate light (LH) malfunction
- License plate light (RH) malfunction
- Electrical supply unit (ESU) malfunction
- Body control module (BCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
