DTC B14B2-14: Parking Light (LH) Circuit Malfunction (BCM): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC B14B2:14 (BCM) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Parking light (LH) circuit malfunction |
| Detection condition |
- The body control module (BCM) detects a short to ground or an open circuit in the parking light (LH) circuit.
Preconditions:
- The parking light is illuminated.
|
| Fail-safe |
Not applicable |
| Possible cause |

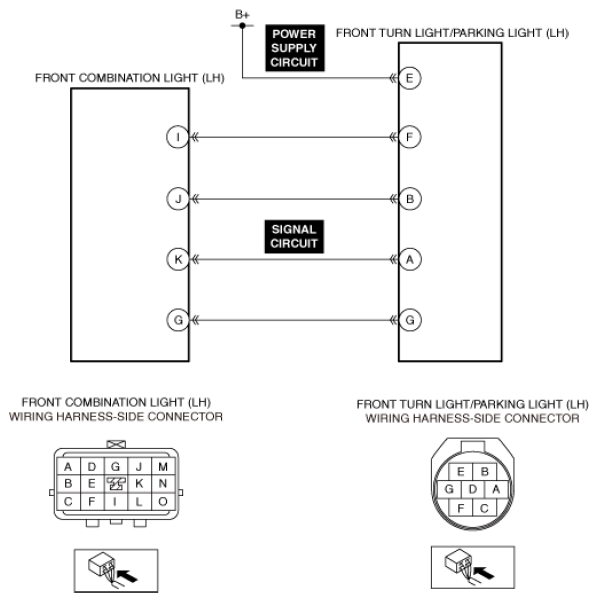

- Front turn light/parking light (LH) connector or terminal malfunction
- Short to ground or open circuit in parking light (LH) power supply circuit
- Parking light (LH) malfunction
- Front combination light (LH) connector or terminal malfunction
- Short to ground in parking light (LH) signal circuit
- Open circuit in parking light (LH) signal circuit
- Front combination light (LH) malfunction
- Body control module (BCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
