Electric Parking Brake Motor Gear Unit Connector Connection Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

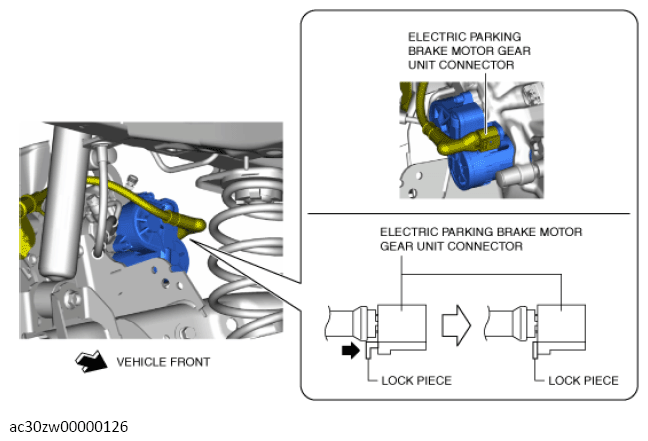

  1. Connect the electric parking brake motor gear unit connector.
  2. Lock the electric parking brake motor gear unit connector.
G13558371Courtesy of MAZDA MOTORS CORP.
