Tunnel cover Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

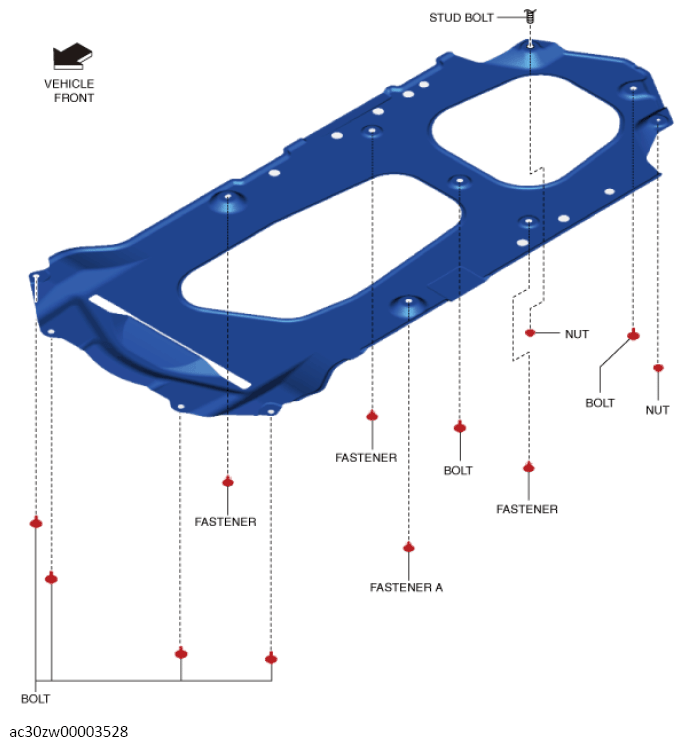

- Align the stud bolt shown in the illustration with the tunnel cover and install.
 Courtesy of MAZDA MOTORS CORP.
|
- Install fastener A shown in the illustration.
- Install the remaining fasteners.
- Tighten the bolts shown in the illustration to the specified torque.
- Tighten the nuts shown in the illustration to the specified torque.
