Insulator (Rear) Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

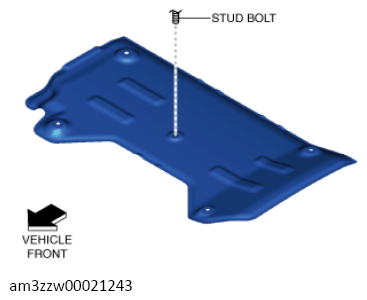

Align the stud bolt shown in the illustration with the insulator (rear) and install.

Courtesy of MAZDA MOTORS CORP.
Tighten the nuts to the specified torque.
