Exhaust Manifold Insulator Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)

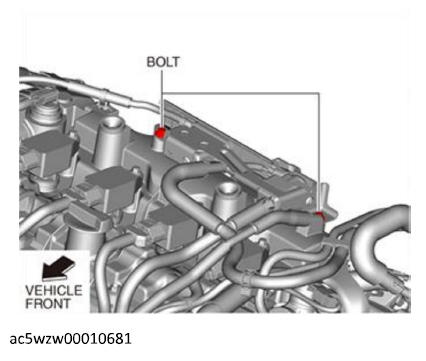

  2. Remove the bolts shown in the illustration. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
    G12184371Courtesy of MAZDA MOTORS CORP.

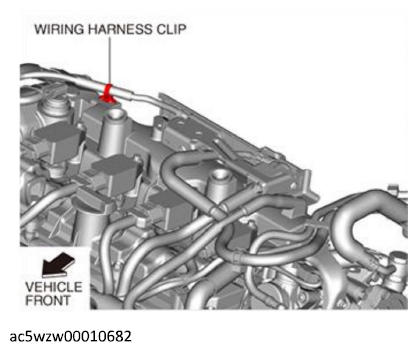

  3. Disconnect the wiring harness clip shown in the illustration.
    G12184372Courtesy of MAZDA MOTORS CORP.

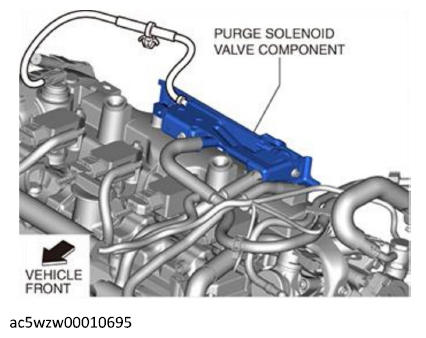

  4. Set the purge solenoid valve component aside so that it does not interfere with the servicing.
    G12184373Courtesy of MAZDA MOTORS CORP.

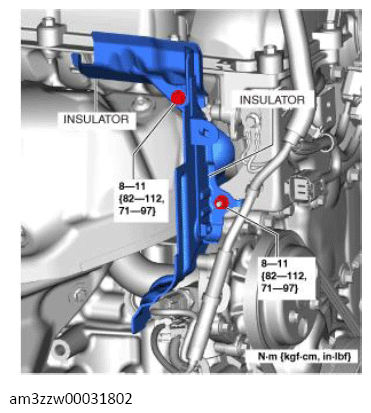

  5. Remove the insulators shown in the illustration.
    Fig 1: Insulator Bolts With Torque Specification (AWD)
    G13557379Courtesy of MAZDA MOTORS CORP.
  6. Remove the exhaust manifold insulator.
