Exhaust Manifold Insulator Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily tighten the exhaust manifold insulator.
Tighten the exhaust manifold insulator in the order shown in the illustration.

Fig 1: Exhaust Manifold Insulator Bolts With Torque Specification (2WD)
Courtesy of MAZDA MOTORS CORP.

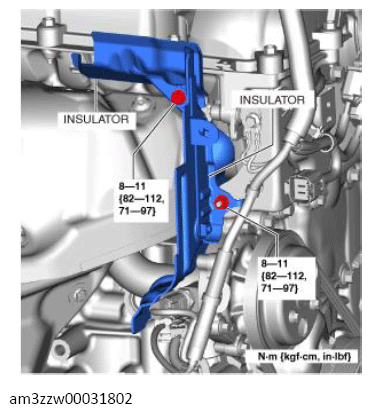

Install the insulators shown in the illustration.

Fig 2: Insulator Bolts With Torque Specification (2WD)
Courtesy of MAZDA MOTORS CORP.
Install the purge solenoid valve component.

Courtesy of MAZDA MOTORS CORP.
Install the wiring harness clip shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Install the bolts shown in the illustration. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)

Courtesy of MAZDA MOTORS CORP.
Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
