Down Switch: Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the screw.

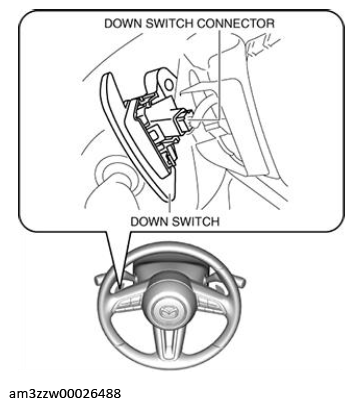

- Disconnect the down switch connector.
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
- Verify that the continuity between down switch component terminals A and B.
- If there is any malfunction, replace the down switch. (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION .)
