Water hose No. 2 (water pipe side) installation note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

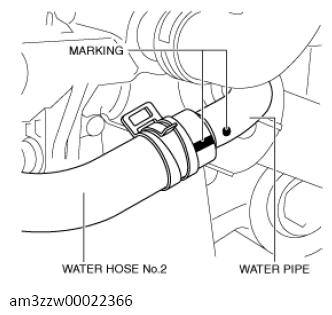

- Install water hose No. 2 to the water pipe as shown in the illustration with the hose clamp expanded.
 Courtesy of MAZDA MOTORS CORP.
|

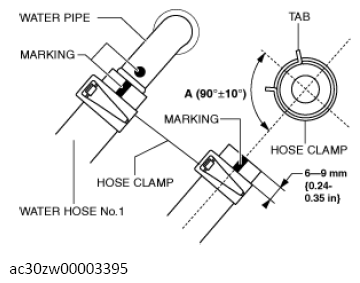

- Install the hose clamp so that it is within area A shown in the illustration.
 Courtesy of MAZDA MOTORS CORP.
|
- Verify that the hose clamp does not interfere with the surrounding accessories.
