Drive Plate Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Special Service Tool (SST)

49 E011 1A0
Ring gear brake set

Courtesy of MAZDA MOTORS CORP.

Replacement Part

Bolt

Quantity: 6

Location of use: Drive plate

Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6A-EL (US)] .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6AX-EL (US)] .)

Remove in the order indicated in the table.

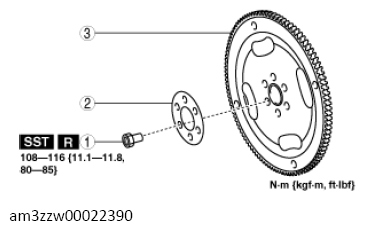

Fig 1: Drive Plate Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Drive plate installation bolts (See DRIVE PLATE INSTALLATION BOLTS REMOVAL NOTE .) (See DRIVE PLATE INSTALLATION BOLTS INSTALLATION NOTE .)
2	Backing plate
3	Drive plate

Install in the reverse order of removal.
