No. 4 engine mount rubber and No. 4 engine mount bracket removal note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Slots have been adopted for the No. 4 engine mount rubber and No. 4 engine mount bracket installation holes. If the No. 4 engine mount rubber and No. 4 engine mount bracket deviate from their original positions when they are installed, engine noise or vibration could increase. When installing the No. 4 engine mount rubber and No. 4 engine mount bracket, align them to the alignment marks placed during removal and install them to their original positions.

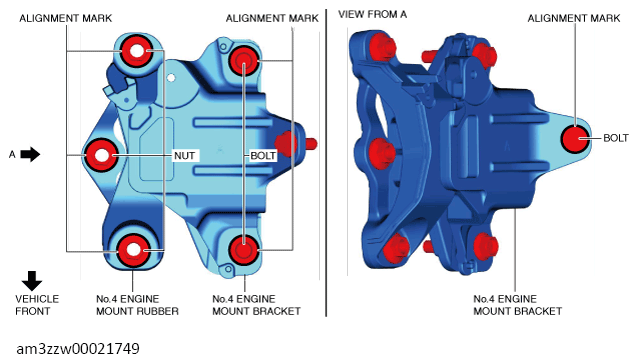

Place alignment marks on the locations shown in the illustration so that they can be assembled to the same positions as before removal.

Courtesy of MAZDA MOTORS CORP.
NOTE:
- Place the alignment marks so that the contour of the nuts and bolts are outlined.
Remove the No. 4 engine mount rubber and the No. 4 engine mount bracket.
